kaufen [55,00 EUR]
inkl. 19% MwSt., Sofort lieferbar
Bestellnr: 264097

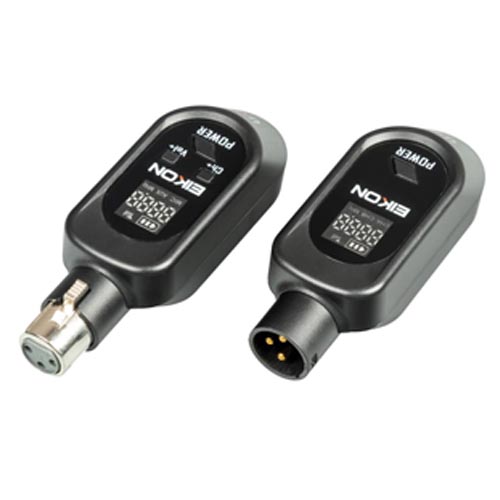

Eikon UXLR UHF XLR Wireless Audio-System
UHF-PLL-Drahtlos-Audiosystem zur Signalübertragung über XLR-Verbindungen, bestehend aus 3 Einheiten: XLR-Sender (weiblich), XLR-Empfänger (männlich) und USB-C-Ladekabel, sowie EVA-Schutzetui.
Doppelte Eingangsempfindlichkeit und Phantomspeisungs-Funktion.
Erhältlich in 2 Frequenzbändern: 863–865 MHz oder 568,500–580,100 MHz.
UXLR – UHF PLL Transmitter
- RF Channels 16 or 30 frequency presets depending on band
- RF Frequency Band UHF: 863-865 MHz or 568.500 – 580.100 MHz
- RF Frequency Stability ±0.002%
- RF Oscillation Mode PLL Synthesized
- RF Modulation Type DQPSK
- RF Output Power 10mW
- Sub-harmonic < 40 dB
- Operating current 130 mA
- Operating Time 3 to 5 hrs
- Operating Power Supply 3.7 V / 800 mA - built-in Lithium battery
- Charging mode USB charging 5V – type C connector
- Charging time 3 hours
- Weight 0.10 Kg
UXLR – UHF PLL Receiver
- RF Channels 16 or 30 frequency presets depending on band
- RF Frequency Band UHF: 863-865 MHz or 568.500 – 580.100 MHz
- RF Frequency Stability ±0.005%
- RF Oscillation Mode PLL Synthesized
- RF Modulation Type DQPSK
- RF Receiving Sensitivity < -98 dBm
- RF Receiving range Up to 30 meters
- Audio dynamic range 106 dBm
- THD Distortion < 0.5%
- S/N Ratio 102 dBA
- Operating current 85 mA
- Operating Time 3 to 5 hrs
- Operating Power Supply 3.7 V / 800 mA - built-in Lithium battery
- Charging mode USB charging 5V – type C connector
- Charging time 4 hours
- Weight 0.10 Kg
